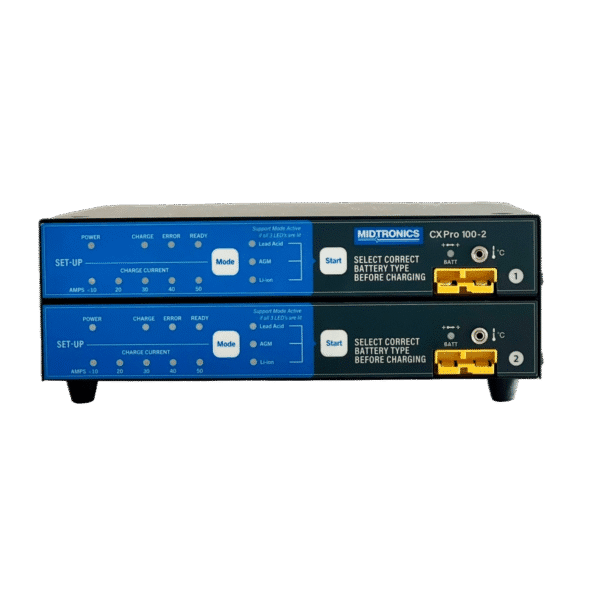

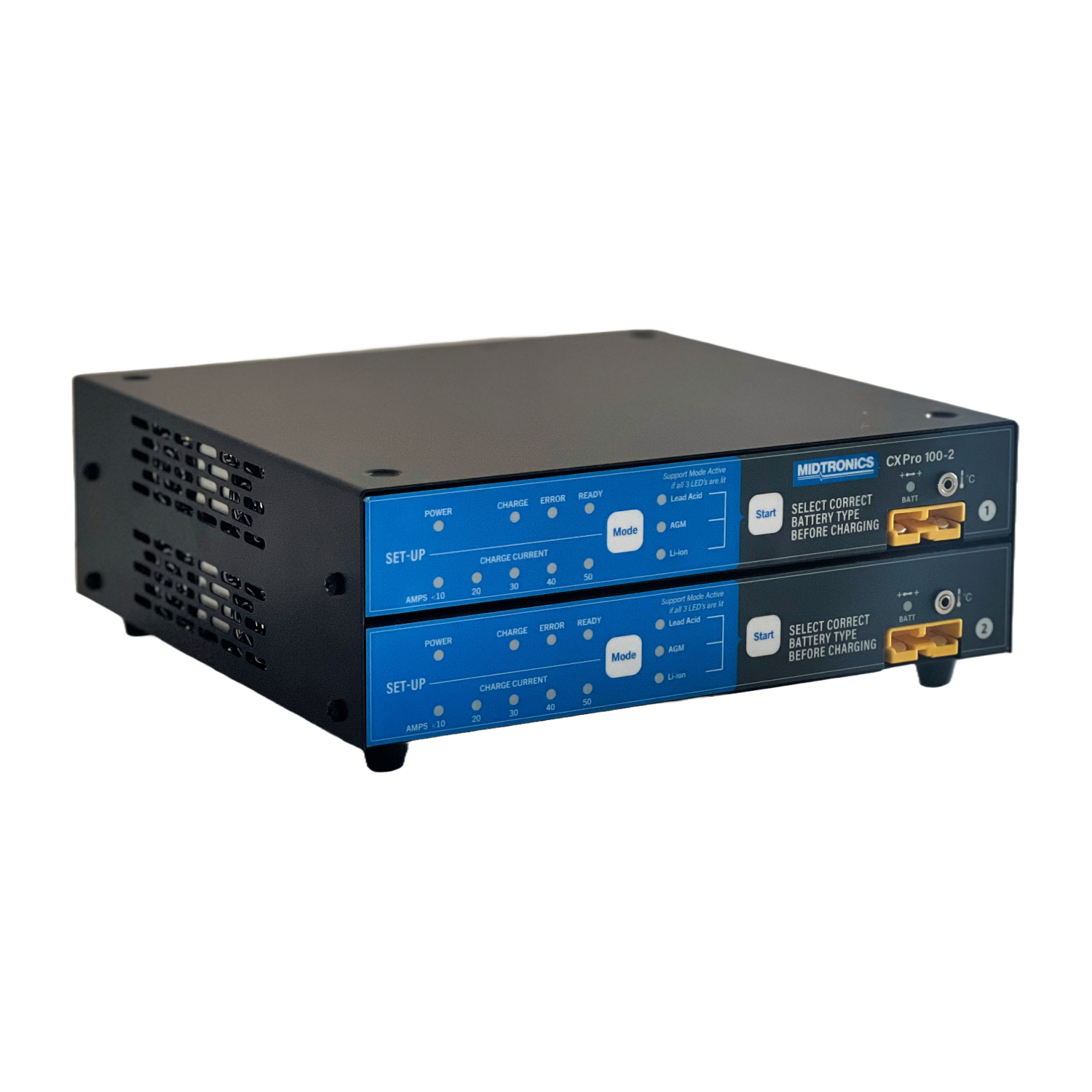

ChargeXpress PRO 100-2
Product details:
CXPRO100-2 is both a high-current stable power supply for diagnostics and a sophisticated workshop charger featuring state-of-the-art technology.
Designed for use with 12V and 24V lead acid and Lithium LiFePO4 batteries, it combines advanced technology with user-friendly operation, making it simple to use and highly portable. It includes all necessary features and functions required for professional battery care in any vehicle workshop.
For 24V applications, the CXPRO100-2 provides balanced charging by enabling users to charge two 12V batteries simultaneously with a current of 50A each without disconnecting. This ensures maximum charge efficiency and delivers balancing of both batteries, increasing their longevity and reliability.
Main Features
100A Fully Automatic Charging
The PRO100-2 is a fully automatic multi-step charger that delivers selectable 50A/12V or 100A/24V for both 12V and 24V systems. Encased in durable aluminium for robustness in tough environments, this charger is designed to protect vehicle electronics. It is non-sparking, reverse polarity protected and short-circuit proof.
24V Applications
For 24V applications, the CXPRO100-2 provides balanced charging by enabling users to charge two 12V batteries simultaneously with a current of 50A each without disconnecting. This ensures maximum charge efficiency and delivers balancing of both batteries, increasing their longevity and reliability.
Alternatively, it allows for the simultaneous charging or power supply of up to 50A at 12V to two separate vehicle batteries during programming or maintenance.
Wireless Connectivity
Unit can be connected to a wireless network to enable transfer of data to ROBIS portal to measure and track charging usage and profiles.
Charging Status Beacons

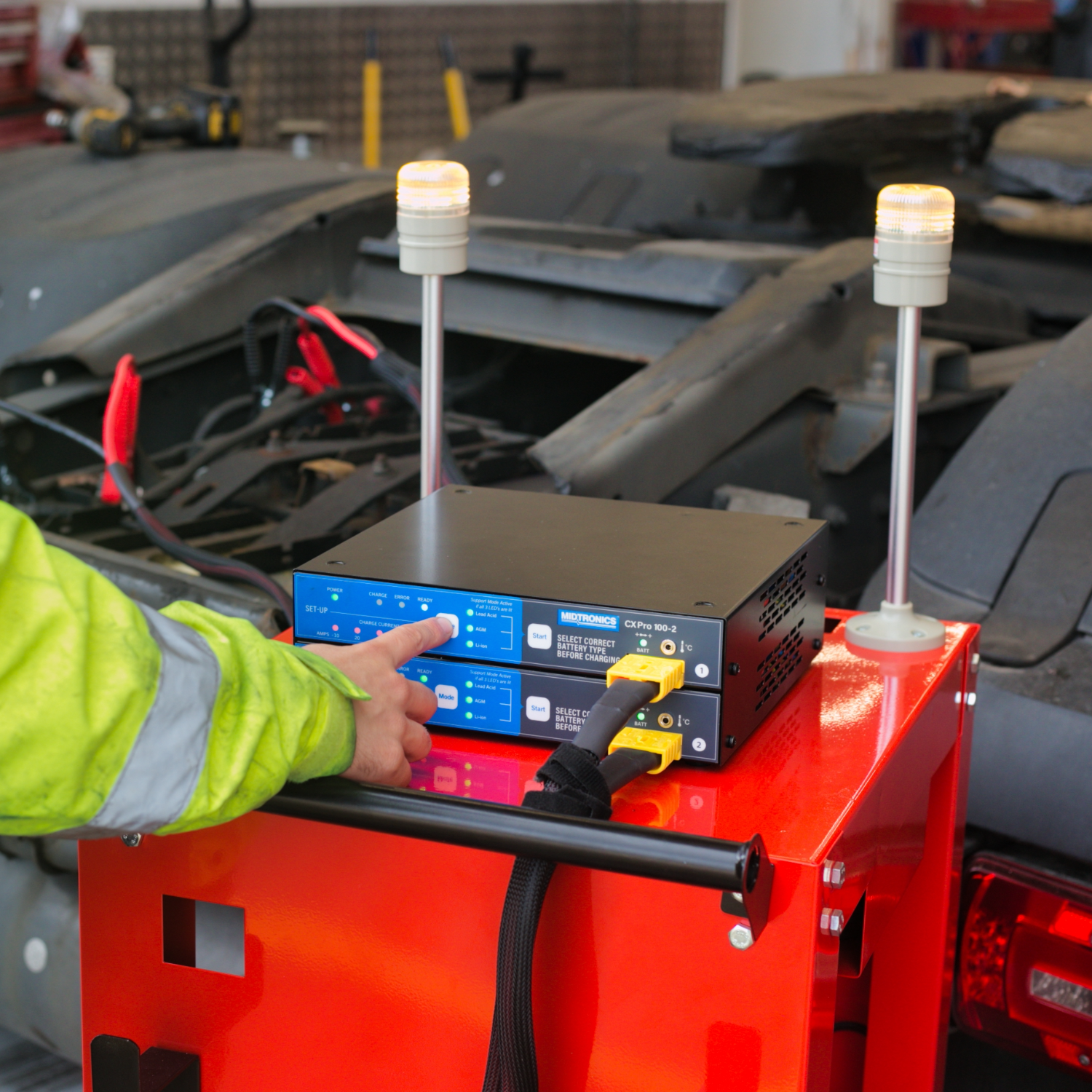

Individual flashing LED (Green/Amber/Red) charging status beacons can be added to each charging profile, giving visible status indication to users anywhere in the workshop.
Specifications
| Input Voltage | 115 V – 230 VAC |
| Output Voltage (Charging) | 14.5 V |
| Output Voltage (Power Supply) | 13.6V |
| Charging Amps | 50A Single Channel
2x 50A Dual Channel |
| Battery Chemistry | Lead-Acid, AGM & Lithium (LiFePO4) |
| Supported Technologies | Flooded Lead-Acid, AGM & GEL |
| Battery Voltage | 12V x2 |
| Cable Length (DC) | 5 Metres x 2 |
| Cable Length (AC) | 2.5 Metres x1 |
| Dimensions | 280 x 260 x 130 mm |
| Temperature Range | 0°C – 40°C |
| Weight (without cables) | 12.4 KG |
| Box Contents | 1x CXPRO 100-2
1x AC Cable 2x DC Cables 1x User Manual |
| Warranty | 2 Years |
