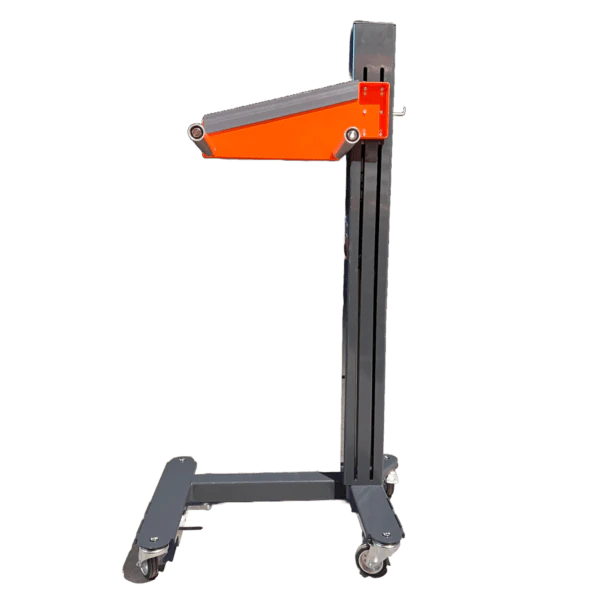

Easy Lift
Product details:
Prevent manual handling related injuries and increase efficiency with GL Technics Easy Lift wheel lift.
The Easy Lift can support and transport wheels weighing up to 60KG, ensuring effortless movement across your workshop. Unlike other wheel lifts, it operates entirely on compressed air, eliminating the need for electricity. To lift a wheel, simply fill the Easy Lift, and to lower it, pull the handle.
Manoeuvrable castor wheels make transportation smooth, while the brakes keep the unit and tyre securely in place for easy fitting or removal.
Main Features
Patented Hydraulic Lift
No electricity is required to operate the Easy Lift, it is entirely powered using compressed air. This also allows the quick and easy lifting and lowering of wheels up to 60KG.
Manouverable
Quickly and precisely line up the lift with the wheel that you are looking to remove. The fitted castors allow for accurate movements and the fitted brakes keep the unit still.
Specifications
| Dimensions (WxDxH) | 570 x 780 x 1,470 mm |
| Weight | 48.8KG |
| Carrying Capacity | 60 KG |
| Operating Pressure | Max 8 Bar |
| Tire Size | Min 135/80 R 13
Max 325/35 ZR 22 |
Safety at work
According to the occupational accident insurance, the „change of wheels“ is work with an increased risk level. High workloads and physical overstressing are probable results for the fitter.
For this reason, the EasyLift is an effective design measure in order to comply with the occupational accident insurance specifications or the ordinances of 90/269 EEC.

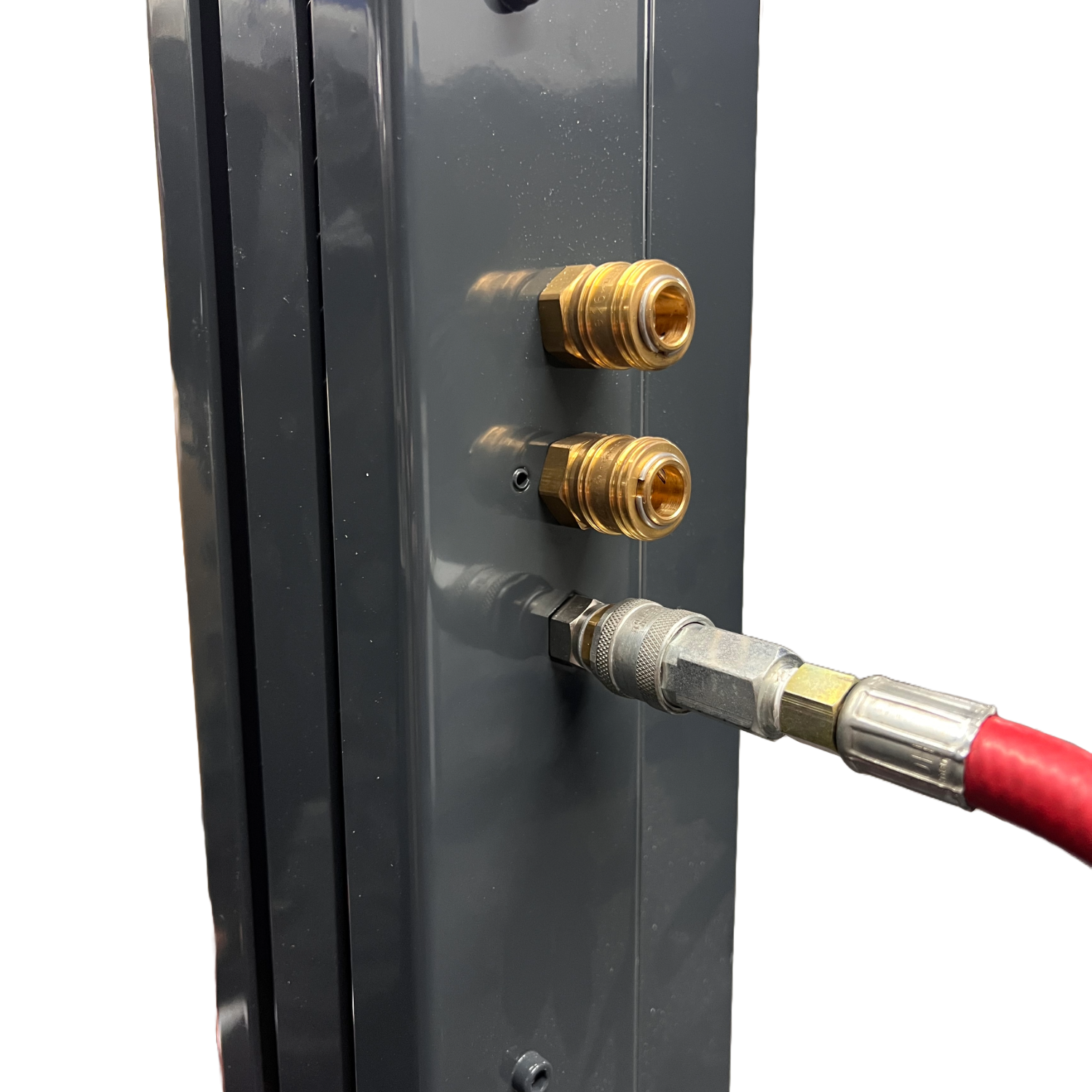

The EasyLift has a variable compressed air connection on the side of the pillar or on the top of the pillar and two distributors for connecting e.g. a tire inflator or impact wrench.
