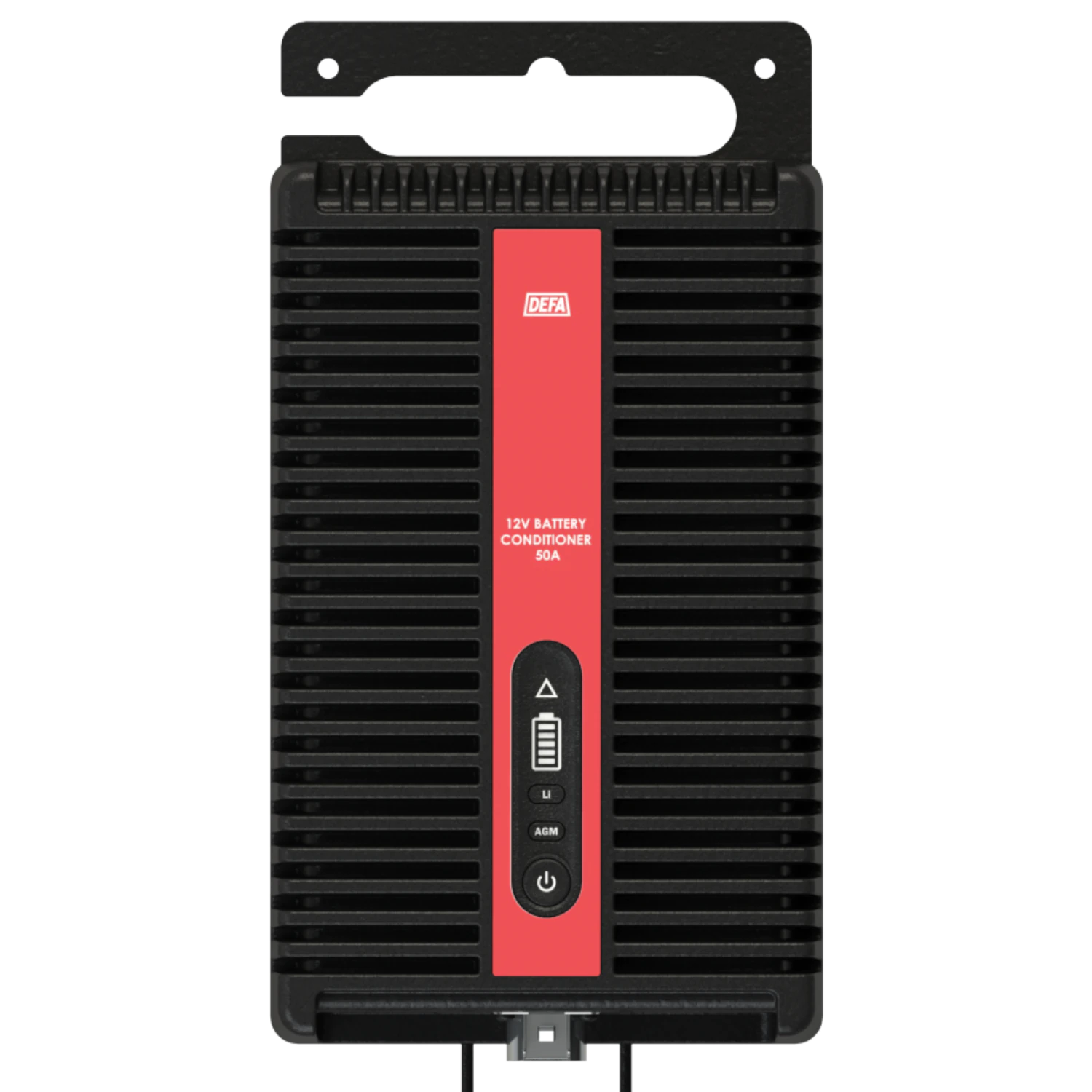

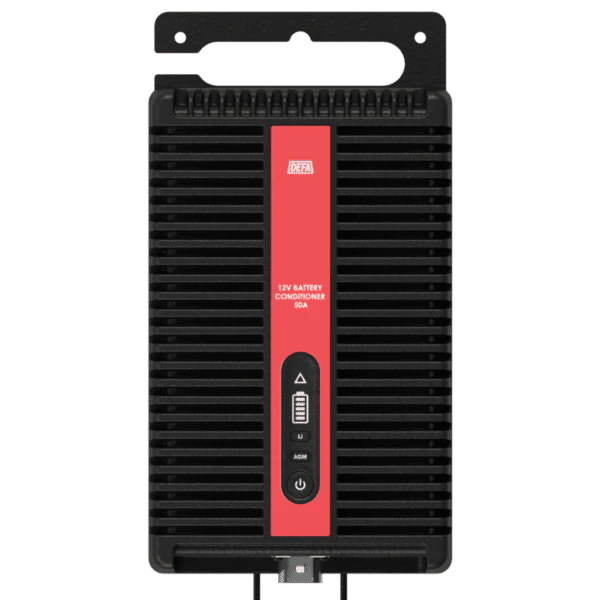

JLR Battery Conditioner for Showroom & Workshop
Product details:
One powerful charger with 2 applications. JLR Battery Conditioner has been designed specifically for JLR Retailers allowing you to use one charger in Showrooms and Workshops.

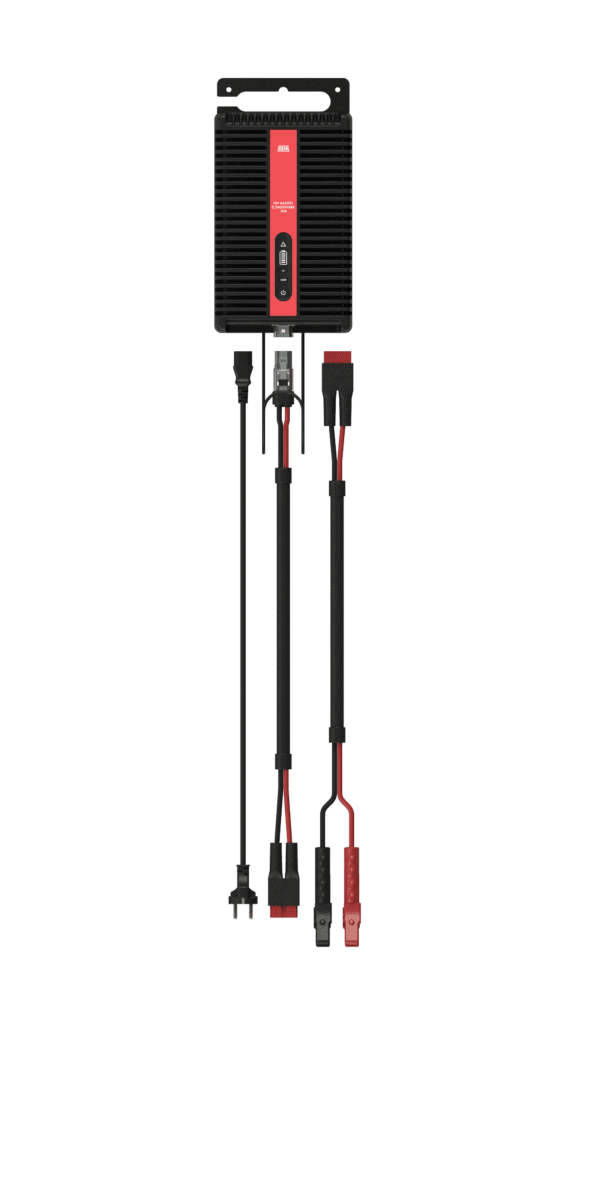

The JLR Battery Conditioner has been specifically designed for JLR Retailers and is approved by JLR. It’s innovative design allows you to use it in both Showroom and Workshop applications with ease. JLR Battery Conditioner comes with 2.5 metre Showroom Cables, 5 metre Workshop Cables and a mounting bracket for maximum flexibility.
Rotronics provides not only this innovative charging solution but provides JLR Retailers with expert battery management know how. For any equipment or battery questions or support contact the team on 01453 840 401 or email info@rotronicsbms.com
Main Features
Showroom Configuration

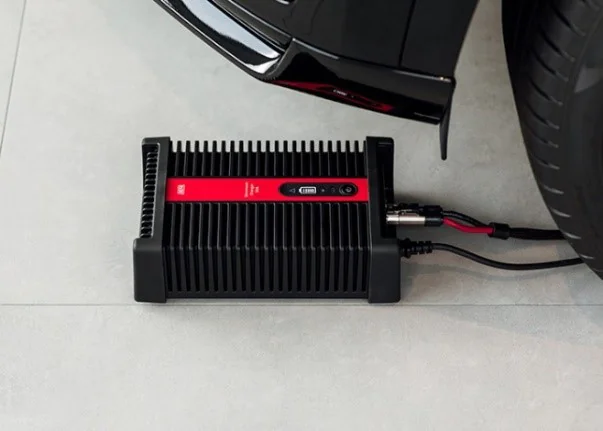

JLR Battery Conditioner can discreetly keep showroom vehicles fully charged and maintained. The detachable charge cables can be connected to the battery without obstructing the bonnet from closing. The cables can then be fed through the engine bay to the charger which can be placed discreetly underneath the vehicle. An innovative fanless design allows the charger to operate silently and go un-noticed by customers. Commencing charging is simple! With a single push of a button charging commences, no modes or settings to select. Rubber feet and edges protect the charger and vehicles against marks or scratches.
Workshop Configuration
JLR battery Conditioner offers versatile and efficient battery charging for workshop applications. Supplied with 5 Metre Workshop Cables you can use the charger in the workshop without needing to remove the cables from the showroom vehicle. Charging is simple with a single button operation and boasts dedicated AGM and LiFeP04 modes. JLR Battery Conditioner is suitable for general battery charging and maintenance and can be used as a power supply for ECU Reprogramming and Diagnostics by providing a constant supply of 50A power.
Specifications
Electrical Data Input
| Mains Voltage | 100-240 V AC |
| Mains Frequency | 50/60 Hz |
| Mains Current | Max 7.1A eff |
| Efficiency | Max 94% |
| Effective Power | Max 800 W |
| Power Consumption (Standby) | Max 1.7 W |
| Protection Class | I |
| EMC Emission | Class A |
Electrical Data Input
| Nominal Output Voltage | 12 V DC / 6 Cells |
| Output Voltage Range | 2 V – 14.7 V DC |
| Output Current @ 230V | 50A @ 14.4 V DC |
| Output Current @120V | 40A @ 14.4 V DC |
| Battery Return Current | 1mA |
Mechanical Data
| Cooling | Convection |
| Dimensions LxWxD | 280 x 175 x 85 mm |
| Weight (without cables) | 3.8 KG |
| AC Power Cable Length | 5 Metres |
| DC Charging Cable Length – Showroom | 2.5 Metres |
| DC Charging Cable Length – Workshop | 5 Metres |
Environmental Conditions
| Operating Temperature | -20°C – +60°C |
| Storage Temperature | -40°C – +85°C |
| Climate Class | B |
| Ingress Protection | Horizontal Position IP53 |
