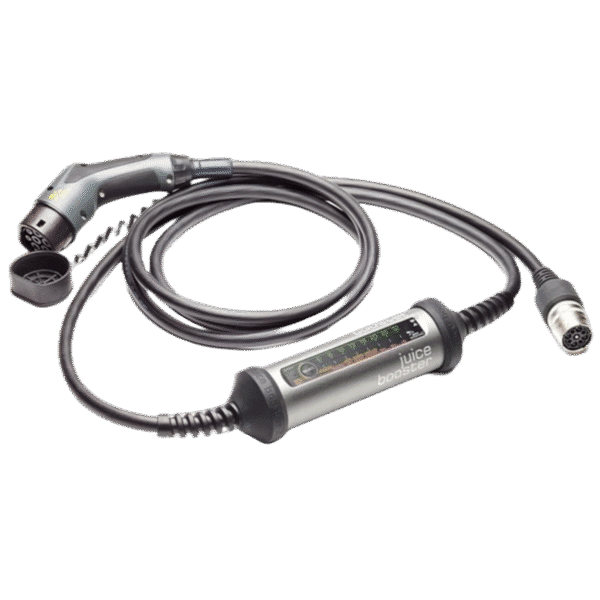

Juice Booster 2
Product details:
Eliminate your reliance on unreliable public EV charging stations and give yourself the ability to charge your vehicle anywhere in the world.
Juice Booster 2 is a powerful, 22kW EV charger fitted in a robust and versatile form factor. You can use Juice Booster 2 in 3 different ways, as a fully portable mobile charging solution, an at home wall mounted charger and as a Mode 3 charging cable for charging at public EV charging stations. All this is fitted in a lightweight, IP67 sealed and IK10 impact resistant design, giving you full charging confidence.
Wherever you are, as long as there is power, you can charge your vehicle. Juice boasts over 30 different adapters to fit power sockets from all over the world. These adapters include, CEE ports, country standard power plugs and many more.
Main Features
Easy to Connect and Charge
Juice Booster 2 has been designed to make adaptive EV charging as simple as possible. Once you have connected Juice Booster 2 to your vehicle and mains power, it will automatically set the charging current based on what adapters have been fitted and the power being supplied to Juice Booster.
You are able to select a specific current, up to the adapters maximum, using the select button.
Residual Current Monitoring (RCD)
Built-in AC and DC advanced fault detection protects users against the possibility of electric shock. This ensures user safety, even when using unknown power supplies. The fitted electronic RCD will trip at 30 mA AC and at 6 mA DC.
Robust
Juice Booster 2 has been designed to be used wherever you are. The unit is IP67 rated and can even operate when submerged in water and it’s IK10 rated construction can withstand up to 3 tonnes being applied.
The connectors have also been designed to withstand the elements and accidental damage. The patented ‘Juice Connector’ can not only withstand being driven over, but they are also fitted with active temperature monitoring to prevent overheating.
Adapters
Charge your vehicle no matter where you are in the world. Juice Booster 2 is compatible with over 30 different adapters including household plugs to CEE ports.
Specifications
| Weight with cable and plug | 4.1KG |
| Output | 1.4 kW – 22 kW AC |
| Rated Current | 6A to 32A |
| Mains Voltage | 230V (Single Phase) / 400V (3-Phase) |
| Operating Temperature | -30˚C to +50˚C |
| Protection | IP67 Dust and Water Resistance
IK10 Impact Resistance |
| Cable Length | 3.1 Metres |
| Coupling on Vehicle Side | Type 2 (EN 62196) / Type 1 (SAE J1772) |
