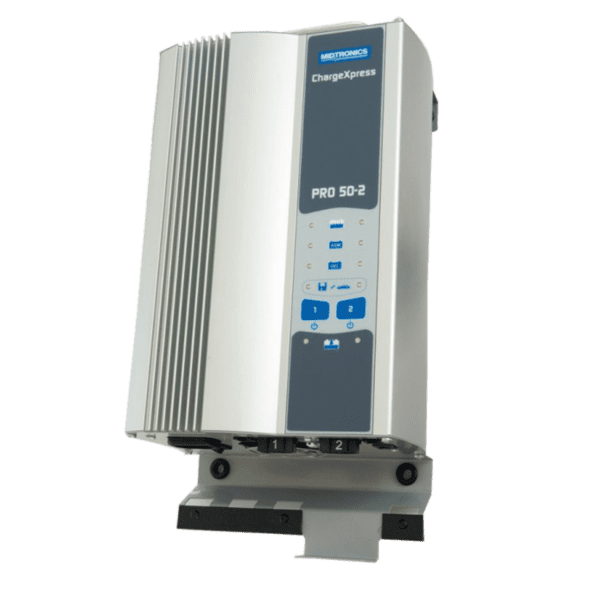

ChargeXpress Pro 50/2
Product details:
ChargeXpress PRO 50-2 is the only charger on the market offering balanced charging. This means you can charge two batteries in a 24 volt system independently at the same times with the added advantage that the brace between the two batteries does not require disconnection.
ChargeXpress Pro 50-2 is an ideal solution for supporting 24V systems on buses, trucks and other heavy-duty vehicles. Combine this with Pro 50-2’s simple one button operation, charging couldn’t be easier.
In a 12V workshop environment PRO50-2, with its 5 metre charge cables allows for versatile use for charging two vehicles up to 25A per channel or up to 50A power supply for a single vehicle during diagnostic work or software updates.
The latest CX PRO charger is now available! CX PRO 100-2 boasts double the power output, with a configurable design. Find out more here.
Main Features
Twin Output Design
Support 24V battery packs individually by having independent support for each 12V battery. Intelligent Charge Mode allows Pro 50-2 to deliver a balanced charge resulting in an extended battery life and improved performance. Alternatively if not charging a 24V pack, you can Charge 2x 12V batteries independently at 25A each.
Simple to Operate
No need to navigate complex menus and enter a range of battery information to commence charging. Simply connect the battery, select the relevant charge mode and leave the charger to do the rest!
Selectable Charge Routines
Designed to work with a range of battery types, CX PRO 50-2 has selectable charge modes for Lead-Acid/Flooded, AGM and GEL batteries. Simply press either the 1 or 2 button until the correct charge mode LED has been lit.
50A Power Supply
CX PRO 50/2 can provide up to 50A of reliable, clean power to support a single 12V battery or 25A each for 2x 12V batteries. Putting ChargeXpress Pro 50-2 into power supply mode is simple. Press and hold on one of the multi-function buttons for 3 seconds and then a green LED will illuminate.
Specifications
| Suitable Battery Types | Flooded Lead-Acid, AGM and GEL |
| Power Output | 50A |
| Safety Features | Automatic Volt Sensing
Spark Safe Reverse Polarity Protection Peak Voltage Protection |
| Power Supply Mode | 50A Single Channel
25A Dual Channel |
| Cables | 2x 5 Metre Heavy-Duty |
| User Input | 2 Button – Simple to Operate |
| Optional Equipment | Workshop Trolley |
