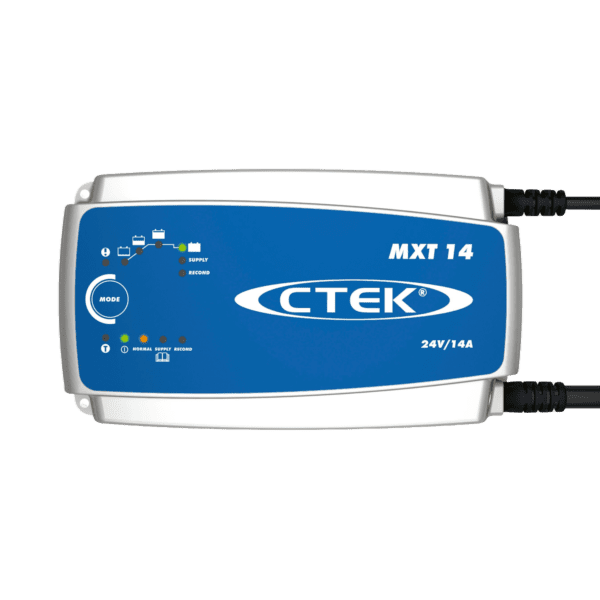

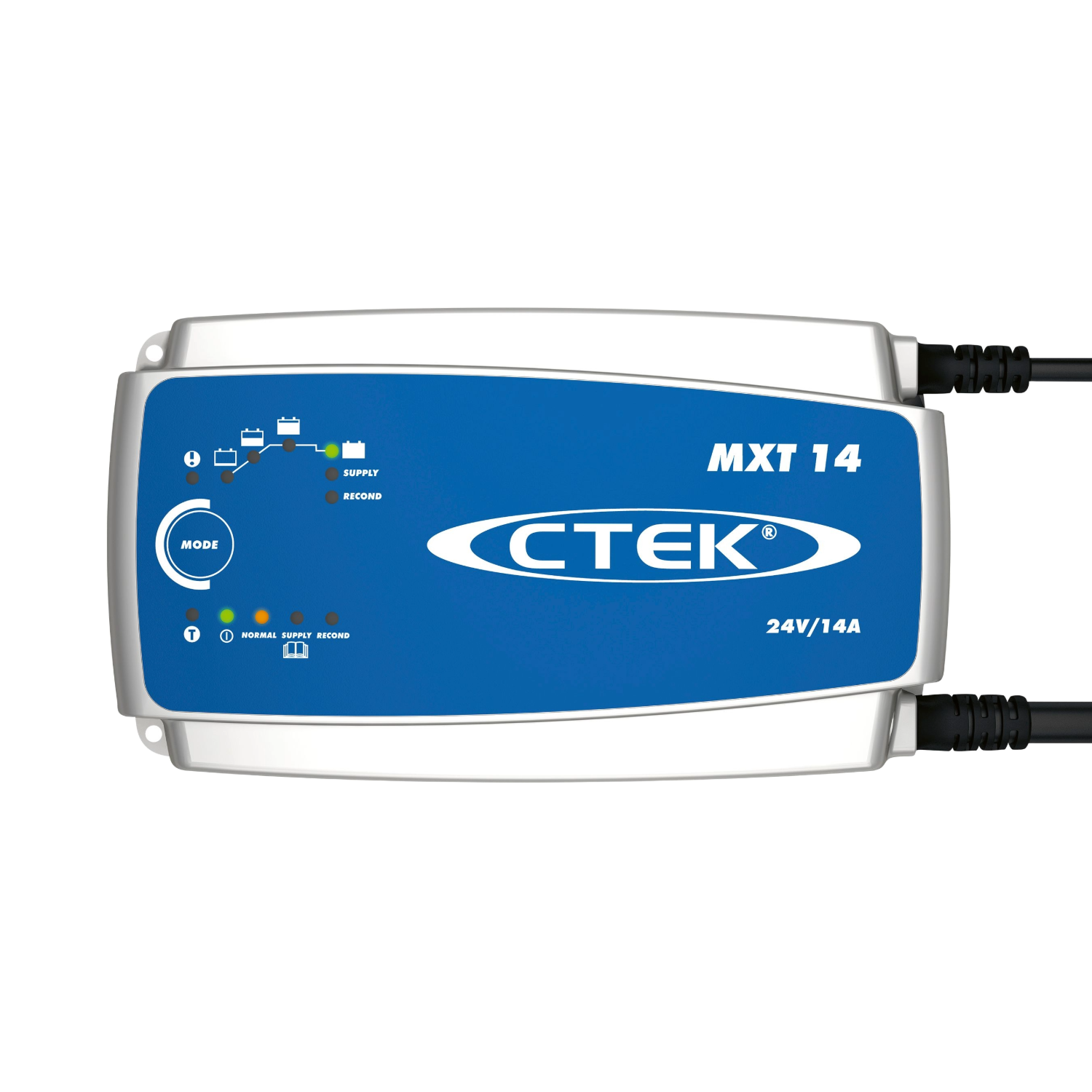

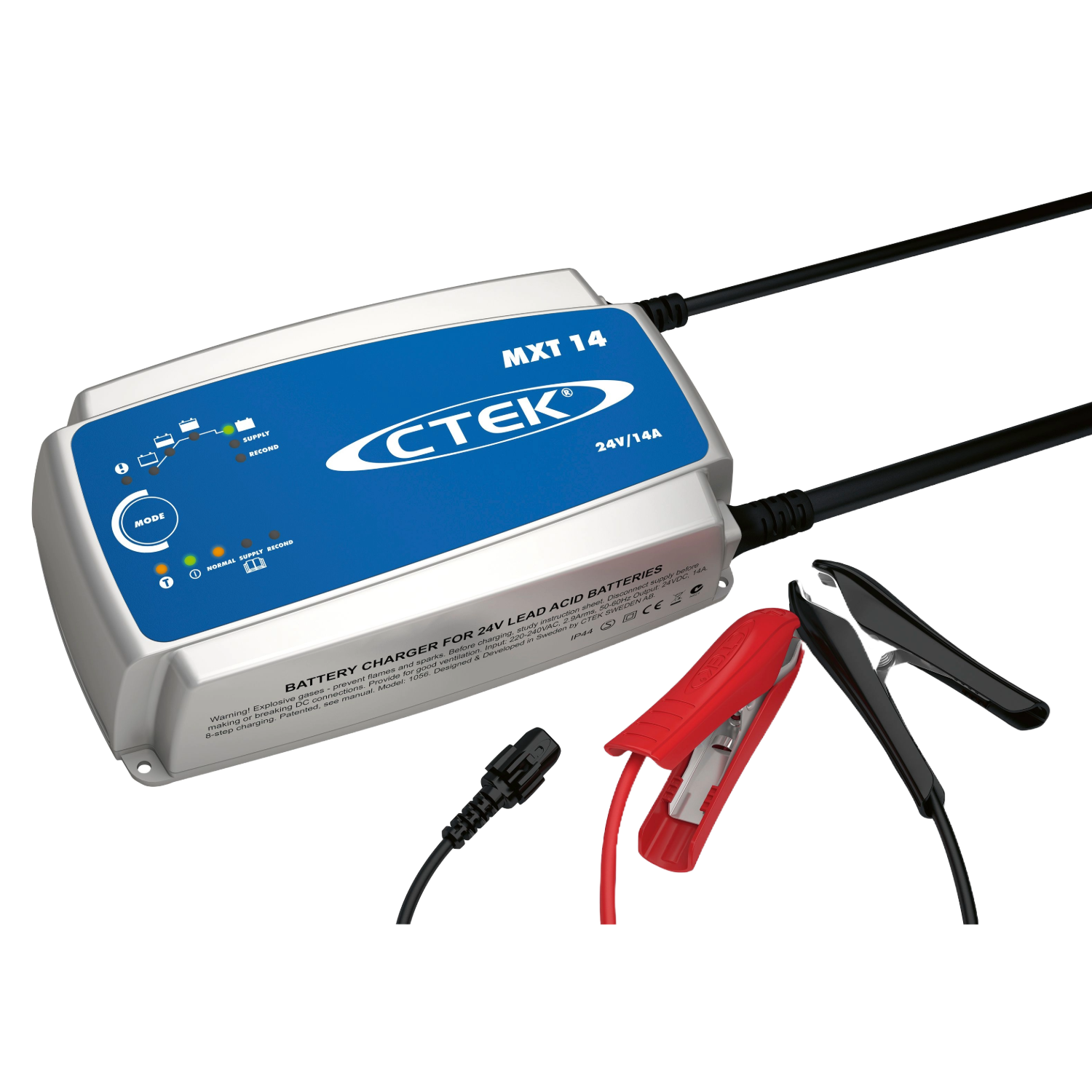

MXT 14
Product details:
Designed for 24V commercial vehicle batteries and equipped with a dedicated 24V power supply mode, the MXT 14 serves as a battery support tool for large vehicle workshops. The 24V power supply maintains the vehicle battery during diagnostic and servicing tasks. It also provides fully automatic 8-step charging with temperature compensation suitable for weather conditions ranging from -20°C to +50°C (-4°F to +122°F). The MXT 14 includes automatic parallel load compensation which ensures that power supply voltage and amperage remain constant and correct, even if the battery experiences additional load during diagnostic operations.
Additional details:
Main Features
Powerful 24V supply
Reliable, constant 24V power supply up to 14A to avoid damage to the vehicle’s ECUs and other sensitive electronics during diagnostic and repair
Fully automatic 8-step charging
Simple, easy to read graphic display to show you exactly where MXT 14 is in the charging cycle. Selectable Power Output
Automatic temperature compensation
External temperature sensor can be mounted inside the positive clamp or near the battery and adjusts the voltage to the ambient temperature in conditions between -20°C and +50°C (-4°F to +122°F), reducing the risk of over- or under-charging.
Tough, Safe & Reliable
Heavy duty 2m charging cables. IP44 rated, short circuit proof and comes with a 2-year warranty.
Specifications
| Compatible Battery Types | Flooded Lead-Acid, AGM & GEL |
| Output | 14A |
| Parallel Load | Automatic |
| Battery Voltage | 24V |
| Start Voltage | 2V |
| Temperature Compensation | External Temperature Sensor |
| Protection | IP44 |
