Showroom 32A – Mercedes
Product details:
Powerful, yet discreet showroom charging solution designed to ensure that all of the vehicles in your showroom have 12V reliable batteries and are ready for use.

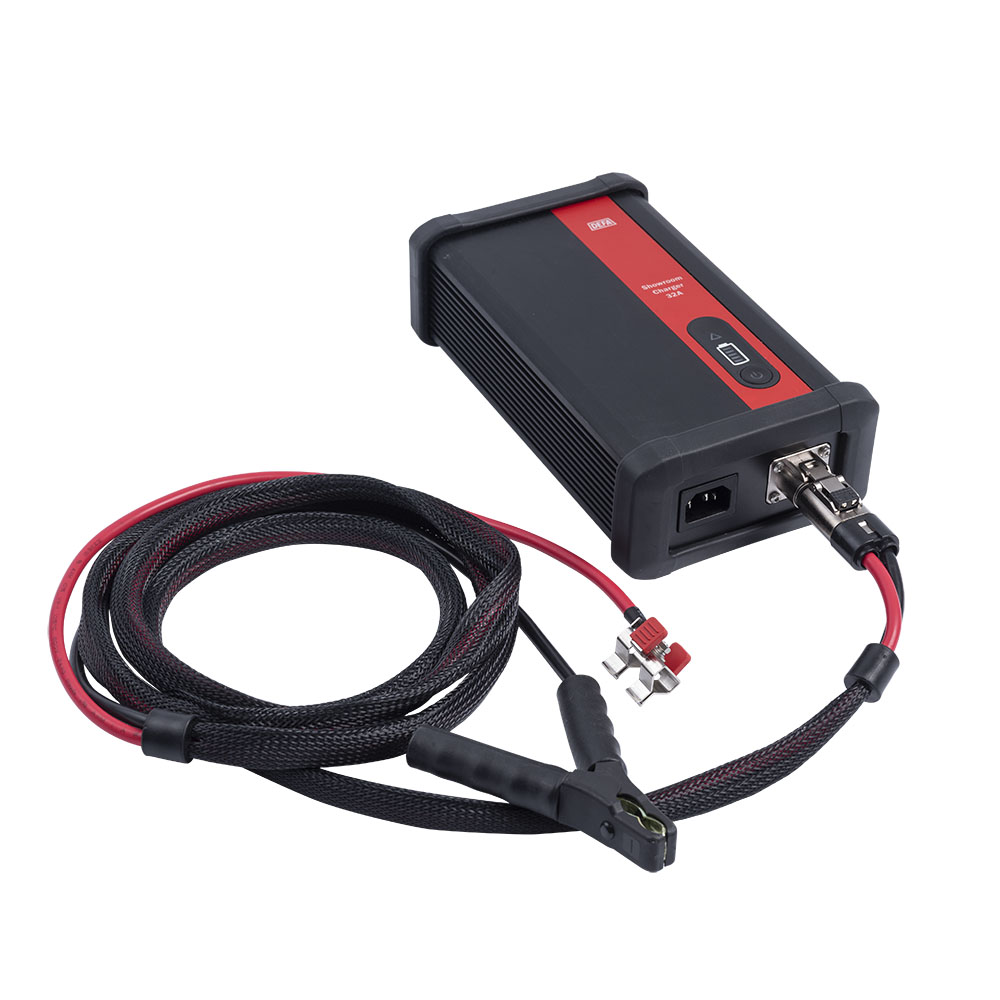

DEFA Showroom 32A has been designed specifically for Mercedes vehicles in showroom environments. Supplied with durable, detachable cables you can feed all wires through the engine bay to the charger underneath, keeping cables and charging equipment out of sight of customers. The cables are fitted with specially designed clamps to connect to Mercedes positive connections, allowing you to close the bonnet without a bulky clamp being in the way.
7 Step charging process boosts battery health and increases longevity and the fitted charge indicator shows you charge progress at a glance.
Showroom 32A is a perfect solution for Mercedes passenger showroom vehicles.
Additional details:
Main Features
Designed for Mercedes
Mercedes vehicles are fitted with a small positive battery pole. Connecting clamps can be challenging especially when in a showroom environment, where you want charging solutions to be discreet. DEFA’s Flush Fit Mercedes Connector allows you to connect to the positive pole which can easily be connected to the 12V connection point under the bonnet. This special clamp allows the bonnet of the vehicle to be closed when the charger is connected
Discreet, Yet Powerful
Connecting clamps can be challenging especially when in a showroom environment, where you want charging solutions to be discreet. DEFA’s discreet small clamps allow you to connect Showroom 32A to a battery, feed the cables through the engine bay. This ensures the charger is out of sight from customers.
Simple Operation
Commencing charging is simple, connect the charger to the battery and press the power button. During operation, the charger will provide 32A of charging power whilst going through a 7 Step Charging procedure, boosting battery health and increasing longevity.
Silent Charging
Designed not to be heard or seen. Showroom 32A has an innovative design to ensure it goes un-noticed whilst charging. The fan-less design ensures there is no noise and the durable anodised Aluminium enclosure ensures all internal components remain cool.
Specifications
| Supported Battery Types | Lead-Acid & Lithium |
| Input Voltage | 230 VAC |
| Operating Temperature | -20 C/ +40 C |
| Charging Voltage | 14.4V |
| Maintenance Charging Voltage | 13.6V |
| Charging Current | 32A |
| Ingress Protection | IP40 (Horizontal) IP44 (Vertical) |
| Dimensions (HxWxD) | 227 x 125 x 62 mm |
| Weight | 1.7 KG |
| AC Power Cable Length | 5 Metres |
| DC Power Cable Length | 2.5 Metres |
