Workshop 125A
Product details:
Versatile and efficient 12V battery charging and maintenance, DEFA Workshop 125A has been designed to support workshops with battery maintenance and support tasks such as ECU Updates and Diagnostic work.
Menu navigation is easy thanks to it’s intuitve Selection Wheel where dedicated charge and maintenance modes can be selected for efficient and safe charging.
Dedicated ECU Programming and Battery Replacement modes provide up to a 125A of constant power to ensure diagnostic and battery replacement tasks are carried out without failure.
Main Features
125A Constant Power Supply
Workshop 125A has been designed for vehicle maintenance tasks that can require a large constant amperage, such as ECU updates or diagnostic work. When placed in the relevant mode, Workshop 125A can provide a constant 125A supply of power.
7 Step Efficient Charging
When in charging mode, Workshop 125A will ask you to set battery type and battery capacity. This allows the charger to set a specific charge mode to efficiently and safely charge the battery. All batteries will go through DEFA’s 7 step charging process to improve battery life.
Reconditioning Mode
Bring deeply discharged batteries back to life using DEFA’s advanced recondition mode. Simply select battery type and capacity and the charger will use an advanced algorithm to recondition the battery and fully charge it.
Simple to Operate

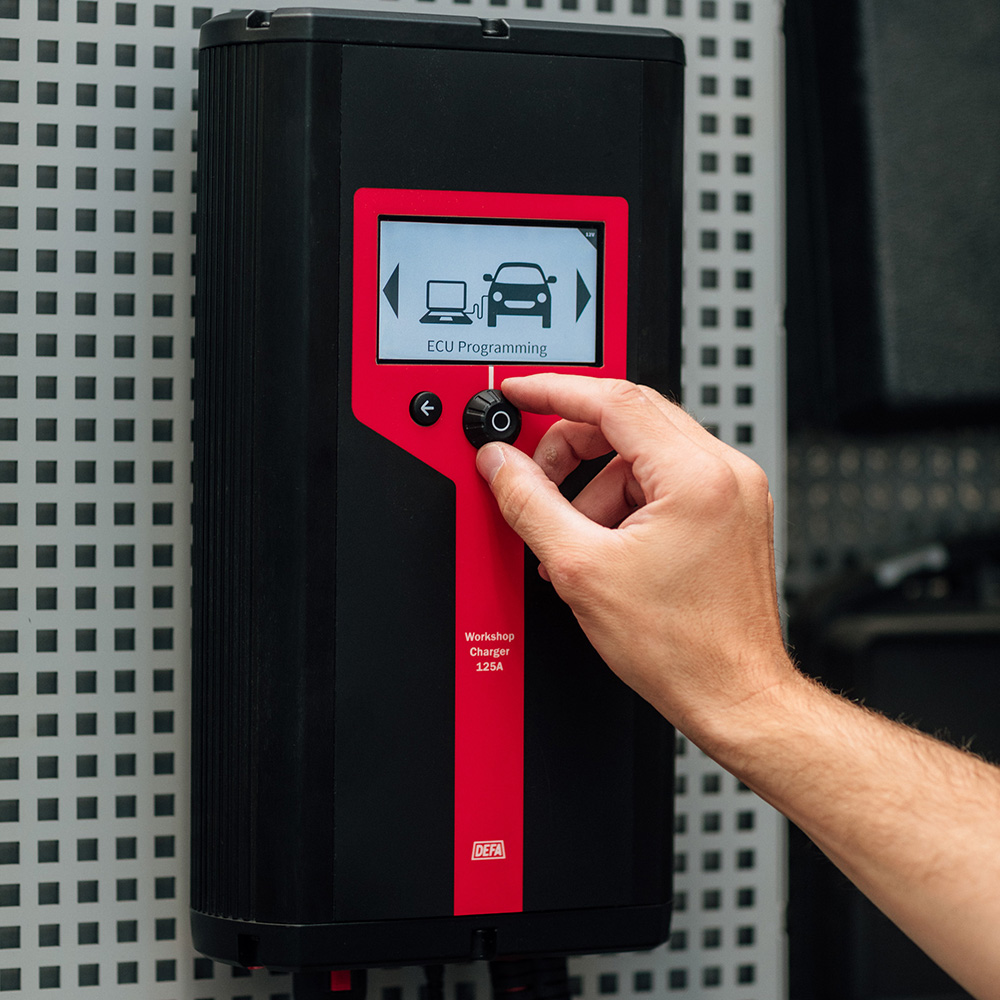

Fitted with an intuitive selection wheel and crisp colour screen, navigating menus is easy. Simply twist the wheel to your desired mode and then press the wheel in to confirm your selection.
Specifications
| Input Voltage | 100 – 240V |
| Operating Temperature | -15˚C / +50˚C |
| Current Draw | Max 9.5 eff @230V |
| Output Voltage | 2 – 32V |
| Charging Current | 125A @ 14.4V / 60A @ 28.8V |
| AC Power Cord | 5 Metres |
| DC Power Cables | 5 Metres |
| IP Rating | IP20 |
| Dimensions HxWxD | 373 x 206 x 104 mm |
| Weight | 7.2KG |
