Automotive businesses need a good battery tester. Whether you serve everyday drivers, other companies, or work on in-house vehicles, ether in a workshop or on the road, there’s an ideal battery tester out there for you.
Rotronics helps automotive operations across the UK design and implement tailored systems for battery management, no matter their speciality. On this page, you’ll find some of our more popular products, and our suggestions on whether they’re right for you.
Of course, this page doesn’t contain everything, so please browse our online product range of battery testers, or get in touch with us if you have any questions or want personalised assistance.
Midtronics CPX-900 ROBIS
The CPX-900 series uses Conductance Profiling™ to test a battery’s cranking ability and reserve capacity. It gives a much clearer picture of how a battery is likely to behave under real-world loads. The CPX-900 models are durable and handheld, with a full-colour screen, ergonomic grips and options such as an integrated printer, barcode scanner and Wi-Fi/Bluetooth connectivity for integration with your workshop reporting systems, such as ROBIS.
The CPX-900 ROBIS model is a fantastic all-rounder, which has been adopted by major OEMs such as Ford, VW, DAF and more. It’s perfect for dealerships, independent garages, and fleet operations, providing users with a good starting point for diagnosing problems.
Midtronics DCA-8000P
The DCA-8000P is one of the most powerful battery tester chargers you can get. It’s far more than your standard multimeter or voltage tester. With dynamic diagnostic charging and simulated start events, you can see how your batteries perform under load. The following charge cycle is tailored to the battery’s behaviour. Within a few minutes, you get a simple pass, fail or recharge decision, plus a printout if desired.
The DCA is essentially a more powerful CPX tester with a 70A charger bolted on. For the end user, a big advantage is the maintenance time. Usually, you’d test the battery with a tester and then hook up a charger if required. With the DCA, all you need to do is connect it and it will then perform a detailed test and then efficiently charge the battery without any user input required in between.
Out of all of the testers we sell, it’s not necessarily the quickest. But it is the most detailed out of all of the testers with the charging add on. However, it’s worth noting it can only test and charge a single 12V battery, not a 24V system.
Because this is such a powerful tool, able to produce detailed results quickly, it’s great for processing lots of batteries. That makes it ideal for contractor workshops, or dealer- and warranty-level battery centres. Some car fast-fit and dealership garages may also benefit if they handle a high volume of battery issues.
Midtronics MVT-200

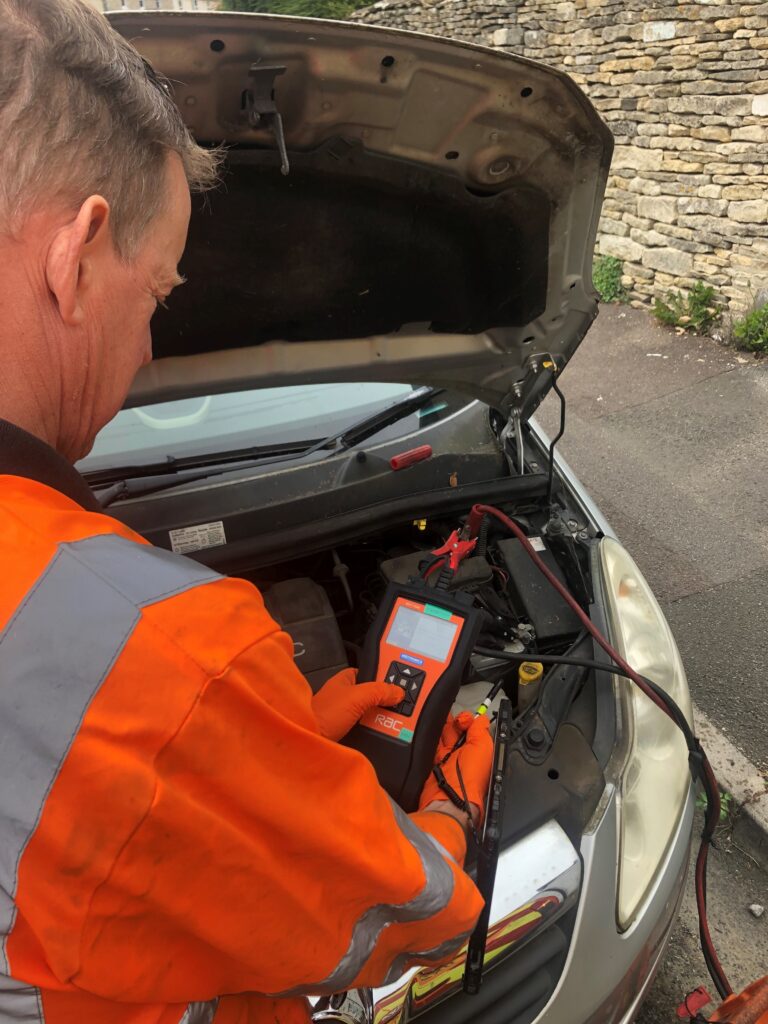

The MVT-200 is a handheld battery and electrical system tester powered by MDX-AI diagnostic technology. The analyser reads a 12-volt battery’s response and delivers a quick result, typically in less than 20 seconds. It uses advanced algorithms to reduce electrical ‘noise’ from in-vehicle loads, so you get reliable health data regarding the battery, even with systems still active. It’s easy to navigate with a 3.5-inch colour display and simple buttons. Plus, you get an optional integrated printer.
The AI technology in the MVT-200 makes it ideal for speedy operations. It gives a good indication of the health of a battery itself. As such, it’s excellent for fast-fit garages, roadside services, fast-turnaround dealerships, and any other shop wanting to reduce diagnostic time. It’s best implemented as an initial diagnostic tool (to confirm an electrical problem) or as part of a routine service.
Midtronics EXP-1000 FHD
The EXP-1000 FHD is based on Midtronics’ expandable electrical diagnostic platform. It uses dynamic conductance testing with temperature compensation and voltage drop analysis to assess battery condition far more reliably than a simple voltage check. It also includes starter and alternator diagnostics, digital multimeter functions and cable-drop testing routines. As you’d expect from a tool like this, you also get a large screen, a guided menu, and an optional printer output.
The EXP-1000 FHD is the go-to tester for 24V systems. All the main fleet providers, such as Stagecoach and Arriva, use FHD. It has advanced algorithms for 24V systems and testing individual battery health and set balancing.
Midtronics xLVS-9000
The xLVS-9000 is a diagnostic system built to test the 12-volt auxiliary battery on EVs under a built-in 500-amp diagnostic load. It estimates the battery’s remaining functional capacity and compares it with the vehicle’s SafetyPower™ capacity requirement. It also supports result sharing via Wi-Fi and printed results via a network printer or an optional integrated printer.
It’s designed for 12-volt EV auxiliary systems, carrying out capacity-based diagnostic assessments under load conditions. That makes it best for any garage, shop, or mobile setup where you see EVs. Dealerships focusing on EVs, EV-capable independent garages, EV fleets, and mobile EV mechanics may all benefit from the xLVS-9000.
Midtronics MDX-645P
The MDX-645P is a handheld battery and electrical system tester that’s all about speedy results. The MDX-645P doesn’t perform a load test on a battery. Instead, it uses conductance testing to assess the battery’s condition, cranking capability, and its general overall health. You can also use it to test the starter motor and charging system, with results from the integrated printer (645P) in seconds.
Because it’s portable and easy to use, the MDX-645P suits busy workshops with a fast workflow. It works particularly well in independent garages, fast-fit centres or for mobile technicians. Even though it’s a mobile unit, you get highly detailed, reliable results compared with other handheld models.
Let Rotronics help you find your perfect battery tester
Here at Rotronics, we specialise in helping mechanics, technicians and automotive managers all over the country find the perfect battery tester for their work environment. The key starting points to consider are your priorities (speed? detail? testing variety? cloud reporting?) and how many batteries your business actually tests. Some garages might test only a couple per week. Large fleet organisations may test dozens per day.
If you’re a bit overwhelmed by all your options, please don’t hesitate to get in touch. Tell us about your workflow, business goals and customer base. Our friendly team here at Rotronics will then help you narrow down your options and find the ideal battery tester for your setup.
